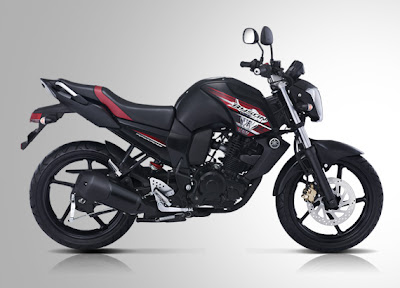

Specifications Yamaha Byson
Yamaha Byson has bertype engine 4 stroke or 4 stroke with fully equipped and air-cooled 2 valve. Number of cylinders on a single cylinder Yamaha Byson and perpendicular. While the volume of 153 cc cylinder diameter x stroke during 58 × 57.9 mm.
Yamaha Byson compression ratio of 9.5 to 1 (9.5: 1). Max power of 10.1 kW/7500 rpm with maximum torque of 13.6 Nm/6000 its rpm. Sebanya oil capacity 1.2 L but only 1 liter of regular turnover alone.
Yamaha Byson is still equipped with a double starter (electric and kick starter or crank). Combustion system is a type carburetor systems technology BS26 x 1. Wet type clutch, manual and multiplat. Using a 5-speed transmission (1-N-2-3-4-5). With the engine specs as above Yamaha Byson has a Maximum Speed??: 110 km / h.
Yamaha Byson Specifications:
Engine :
Engine type: 4 Step, 2 Valve SOHC, Air Cooled
Number / Position Cylinders: Single Cylinder / Vertical
Cylinder Volume: 153 cc
Bore x Stroke: 58.0 x 57.9 mm
Compression Ratio: 9.5: 1
Maximum power: 10.1 kW / 7500 rpm
Maximum Torque: 13.6 Nm / 6000 rpm
Starter System: Electric Starter and Kick Starter
Lubrication System: Wet
Engine Oil Capacity: Total: 1.2 Liter / Replacement Periodical: 1 Liter
Fuel system: Carburetor BS26 x 1
Clutch Type : Wet, Manual Clutch, Multiplat
Transmission type: Return, 5 Speed
Transmission Operation Pattern : 1 - N - 2 - 3 - 4 - 5
Number / Position Cylinders: Single Cylinder / Vertical
Cylinder Volume: 153 cc
Bore x Stroke: 58.0 x 57.9 mm
Compression Ratio: 9.5: 1
Maximum power: 10.1 kW / 7500 rpm
Maximum Torque: 13.6 Nm / 6000 rpm
Starter System: Electric Starter and Kick Starter
Lubrication System: Wet
Engine Oil Capacity: Total: 1.2 Liter / Replacement Periodical: 1 Liter
Fuel system: Carburetor BS26 x 1
Clutch Type : Wet, Manual Clutch, Multiplat
Transmission type: Return, 5 Speed
Transmission Operation Pattern : 1 - N - 2 - 3 - 4 - 5
Chasis :
Frame Type: Diamond
Suspension Front: Telescopic
Rear Suspension: Swing Arm, Adjustable Suspension Monocross
Tires Front: 100/80-17M/C 52P
Rear Tires: 58P 120/70-17M/C
Brakes Front: Disc
Rear Brakes: Drum
Suspension Front: Telescopic
Rear Suspension: Swing Arm, Adjustable Suspension Monocross
Tires Front: 100/80-17M/C 52P
Rear Tires: 58P 120/70-17M/C
Brakes Front: Disc
Rear Brakes: Drum
Dimension :
P x L x H: 2075 mm x 780 mm x 1045 mm
Axis Wheels distance: 1334 mm
Distance Lowest to Land: 160 mm
Seat Height: 790 mm
Fill Weight: 137 kg
Fuel Tank Capacity: 12 Liter
Axis Wheels distance: 1334 mm
Distance Lowest to Land: 160 mm
Seat Height: 790 mm
Fill Weight: 137 kg
Fuel Tank Capacity: 12 Liter
