Specifications Honda Tiger 2012
First introduced in August 1993, Honda Tiger is now present different, adventurous, daring to be different, and loved touring.
The following are some features of Honda Tiger:
- Double suspension with reservoir tank to dampen vibrations more perfect for driving comfort on various road terrain, including for long-distance travel and touring.
- Hydraulic disc brakes front and rear.
- LED stop lamp 6 points on the rear lighting produces a clearer signal to the vehicle behind him.
- Separated Rear Grip to provide comfort and safety when lift.

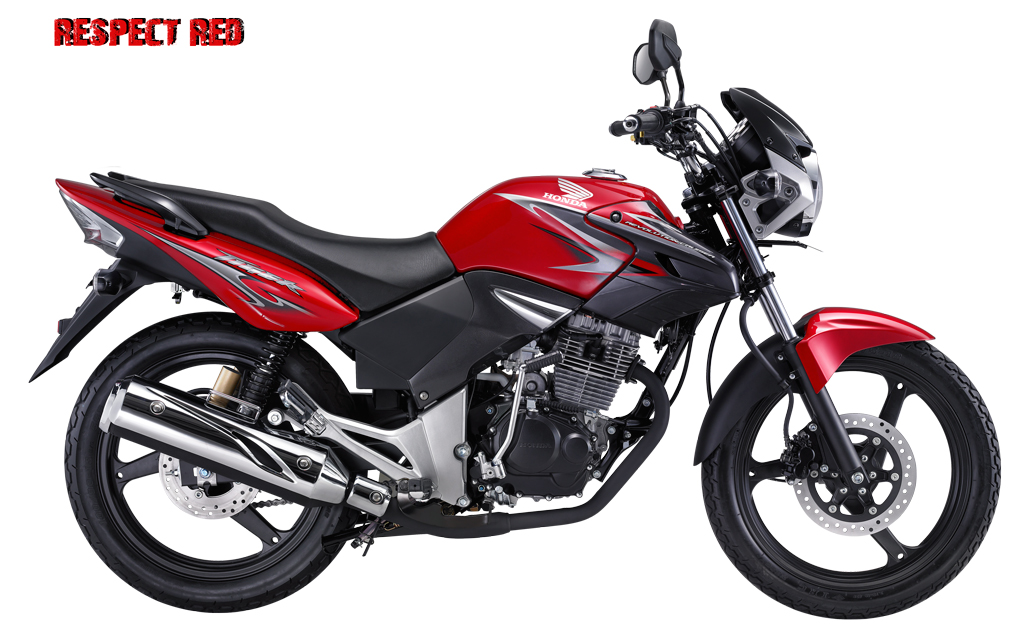

Honda Tiger has no choice of 4 colors: Violet Trust, Black Unity, Respect Red dan Loyal White.
Specifications Motor Honda Tiger :
Dimension :
Dimensions (L x W x H) 2029 x 747 x 1124 mm
Wheels Wheelbase 1327 mm
Lowest distance to the ground 155 mm
empty weight
139 kg (single headlight)
138 kg (Dual headlight)
Framework :
Frame Pattern diamond (diamond steel)
Telescopic front suspension
Swing arm rear suspension with dual spring oil tube
Front tire size 2.75 - 18 42 P
Tire size behind 100/90 - 18 M / C 56P
Hydraulic disc front brakes with dual piston
Rear hydraulic disc brakes with single piston
Engine :
Engine Type SOHC 4 Steps
The air conditioning cooling system
Bore x stroke 63.5 x 62.2 mm
The volume measures 196.9 cc
Compression ratio of 9.0: 1
Maximum power of 16.7 PS / 8500 rpm
Maximum torque kgf.m 1.60 / 7,000 rpm
Manual clutch, wet multi-plate clutch
Electric starter and kick starter
Busi ND X 24 EP - DP8 EA-9 U9/NGK
Capacity :
Fuel tank capacity is 13.2 liters
6-speed transmission
Gear shift pattern 1-N-2-3-4-5-6
Electrical :
Aki MF battery, 12 V - 7 A.h
AC Ignition System - CDI, Magneto
